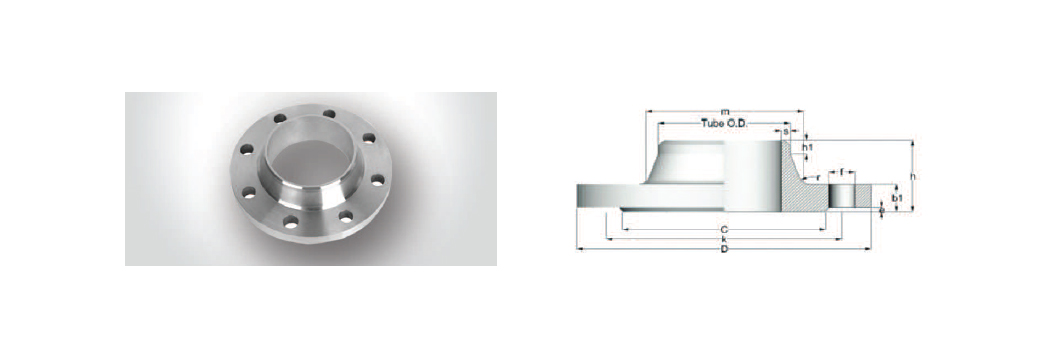

Kaynak Boyunlu Flanş EN 1092-1 PN10 - PN16 - PN40 farklı ölçülerde paslanmaz

PN 16

NWInchmmDkcb1smmAğırlık
DN 103/8"17,2906040161,8284M120,58
DN 151/2"21,395654516232M120,65
DN 203/4"26,91057558182,340M120,95
DN 251"33,71158568182,646M121,14
DN 3211/4"42,414010078182,6564M161,69
DN 4011/2"48,315011088182,664M161,86
DN 502"60,3165125102182,974M162,53
DN 6521/2"76,1185145122182,992M163,06
DN 803"88,9200160138203,21058M163,70
DN 1004"114,3220180158203,6131M164,62
DN 1255"139,7250210188224156M166,30
DN 1506"168,3285240212224,5184M207,75
DN 2008"219,1340295268245,9234M2011,00
DN 25010"273395350320266,329812M2415,60
DN 30012"323,9445400370267,1350M2422,00
DN 35014"355,6505460430267,140016M2431,20
DN 40016"406,4565515482267,1456M2736,30
DN 45018"4576155652850220M2739,90
DN 50020"508670620585287,1559M3061,00

PN 40

NW Inch mm D k c b1 s m m Ağırlık
DN 10 3/8" 17,2 90 60 40 16 1,8 28 4 M12 0,58
DN 15 1/2" 21,3 95 65 45 16 2 32 M12 0,65
DN 20 3/4" 26,9 105 75 58 18 2,3 40 M12 0,95
DN 25 1" 33,7 115 85 68 18 2,6 46 M12 1,14
DN 32 11/4" 42,4 140 100 78 18 2,6 56 4 M16 1,69
DN 40 11/2" 48,3 150 110 88 18 2,6 64 M16 1,86
DN 50 2" 60,3 165 125 102 20 2,9 75 M16 2,53
DN 65 21/2" 76,1 185 145 122 22 2,9 90 M16 3,06
DN 80 3" 88,9 200 160 138 24 3,2 105 8 M16 3,70
DN 100 4" 114,3 235 190 162 24 3,6 134 M16 4,62
DN 125 5" 139,7 270 220 188 26 4 162 M16 6,30
DN 150 6" 168,3 300 250 218 28 4,5 192 M20 7,75
DN 200 8" 219,1 375 320 285 34 6,3 244 M20 11,00
DN 250 10" 273 450 385 345 38 7,1 306 12 M24 15,60
DN 300 12" 323,9 515 450 410 42 8 362 M24 22,00
DN 350 14" 355,6 580 510 465 46 8,8 408 16 M24 31,20
DN 400 16" 406,4 660 568 535 50 11 462 M27 36,30
DN 450 18" 457 685 610 57 500 20 M27 39,90
DN 500 20" 508 755 670 615 57 14,2 562 M30 61,00
